Electric Vehicle Charging Connector Withdrawal Test Equipment EV Plug Withdrawal Test Machine

Brand Name : Sinuo

Model Number : SNQC1013

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 30 sets/month

Delivery Time : 20 days

Packaging Details : Plywood Case

Applied Table : Table 5

Applied Figures : Fig13, Fig14

Applied Standard : IEC 62196-1

Applied Clauses : Clause 14.1.5, 14.1.6

Weight Configuration : 165-750N

Operation Method : Manual Operation

Test Station : Single Station

Test Plugs : Customized

Contact Now

Electric Vehicle Charging Connector Withdrawal Test Equipment IEC 62196-1


Complied Standards & Clauses


This test equipment conforms to IEC 62196-1:2022 clause 14.1.5, 14.1.6, fig13, fig14.

Equipment Overview

It is used to check the withdrawal force required when the test plug is withdrawn from the socket-outlet and latching device.


Technical Parameters

The test plug, according to the relevant standard sheets, shall have finely ground contacts of hardened steel, having a surface roughness not exceeding 0,8 µm over their active length and spaced at the nominal distances, with a tolerance of ±0,05 mm.

The dimension of the plug contacts or the distance between contact surfaces for other types of plug contacts shall be in accordance with the minimum dimension(s) given in the relevant standard sheets, with a tolerance of +0,010mm

The test plugs are not included in this test apparatus, please use those test plugs that client already ordered separately as following:

No Standard Figure No.: Name QTY
1 IEC62196-2/Ed.3/CDV © IEC(E) STANDARD SHEET 2-I sheet 1 Test-plug:32A,250 V AC VEHICLE INLET 1
2 IEC62196-2/Ed.3/CDV © IEC(E) STANDARD SHEET 2-Ilb sheet 1 Test-plug:63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE 1
3 IEC62196-2/Ed.3/CDV © IEC(E) STANDARD SHEET 2-Ild sheet 1 Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE 1
4 IEC62196-2/Ed.3/CDV © IEC(E) STANDARD SHEET 2-Ilf sheet 1 Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE 1
5 IEC62196-2/Ed.3/CDV © IEC(E) STANDARD SHEET 2-Illa sheet 1 Test-Plug: 16 A, 250 V SINGLE-PHASE PLUG WITH 1 PILOT CONTACT 1
6 IEC62196-2/Ed.3/CDV © IEC(E) STANDARD SHEET 2-Illa sheet 3 Test-VEHICLE INLET : 16A, 250V SINGLE-PHASE VEHICLE INLET WITH 1 PILOT CONTACT
7 IEC62196-2/Ed.3/CDV © IEC(E) STANDARD SHEET 2-Illb sheet 1 Test-Plug : 32 A, 250 V SINGLE-PHASE PLUG WITH 2 PILOT CONTACTS 1
8 IEC62196-2/Ed.3/CDV © IEC(E) STANDARD SHEET 2-Illb sheet 3 Test-VEHICLE INLET : 32A, 250V SINGLE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
9 IEC62196-2/Ed.3/CDV © IEC(E) STANDARD SHEET 2-Illc sheet 1 Test-Plug : 63 A, 480 V THREE-PHASE PLUG WITH 2 PILOT CONTACTS 1
10 IEC62196-2/Ed.3/CDV © IEC(E) STANDARD SHEET 2-Illc sheet 3 Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
11 IEC62196-3/Ed.2/CDV © IEC(E) STANDARD SHEET 3-Ib
Sheet 1		 Test VEHICLE CONNECTOR 1
12 IEC62196-3/Ed.2/CDV © IEC(E) STANDARD SHEETS
CONFIGURATION BB
VEHICLE COUPLER 250 A 900 V DC
STANDARD SHEET 3-Iia Sheet 1		 Test VEHICLE CONNECTOR 1
13 IEC62196-3/Ed.2/CDV © IEC(E) STANDARD SHEET 3-IIIa Sheet 2 Test VEHICLE INLET 1
14 IEC62196-3/Ed.2/CDV © IEC(E) STANDARD SHEET 3-Iva VEHICLE INLETMODES 2, 3 AND 4 Sheet 2 Test VEHICLE INLET 1
15 IEC62196-3/Ed.2/CDV © IEC(E) STANDARD SHEET 3-Ivb VEHICLE INLET ALL MODES Sheet 1 Test VEHICLE INLET 1
Details:

Electric Vehicle Charging Connector Withdrawal Test Equipment EV Plug Withdrawal Test MachineElectric Vehicle Charging Connector Withdrawal Test Equipment EV Plug Withdrawal Test Machine




Product Tags:

Manual Operation EV Connector Testing Equipment



165-750N Weight Configuration Electric Vehicle Charging Connector Tester



Single Station Test IEC 62196-1 Test Apparatus


Buy cheap Electric Vehicle Charging Connector Withdrawal Test Equipment EV Plug Withdrawal Test Machine product

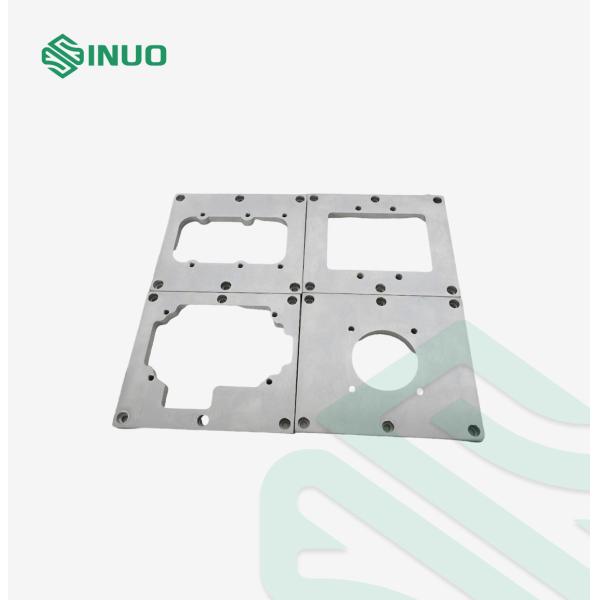

Electric Vehicle Charging Connector Withdrawal Test Equipment EV Plug Withdrawal Test Machine Images
